GS-ONE Ground Control Station

The Dedicated Command System for Inspired Flight Aircraft

GS-ONE is Inspired Flight’s purpose-built ground control station, engineered to deliver reliable communication, extended runtime, and seamless integration with IF800 and IF1200A aircraft. Featuring a large 7-inch high-brightness touchscreen, secure encrypted transmission, a field-swappable battery system, and Blue UAS & NDAA compliance, GS-ONE provides operators with a stable and responsive command interface designed for professional flight operations.

Developed specifically for Inspired Flight platforms, GS-ONE integrates natively with Inspired Ground Control and Inspired Suite workflows, enabling consistent fleet operation and efficient mission execution.

Built for Professional Field Operations

GS-ONE is designed to support extended missions and demanding operational environments. Its removable primary battery and internal backup battery allow operators to hot-swap batteries in the field without powering down the controller, maintaining continuous operation during mission-critical deployments.

The integrated 7-inch touchscreen provides enhanced visibility and situational awareness, with a high-brightness display that remains clearly visible outdoors, including when wearing polarized sunglasses.

Running Inspired Ground Control on an Android-based platform, GS-ONE delivers a responsive and fully integrated mission control interface optimized for Inspired Flight aircraft.

Key Features

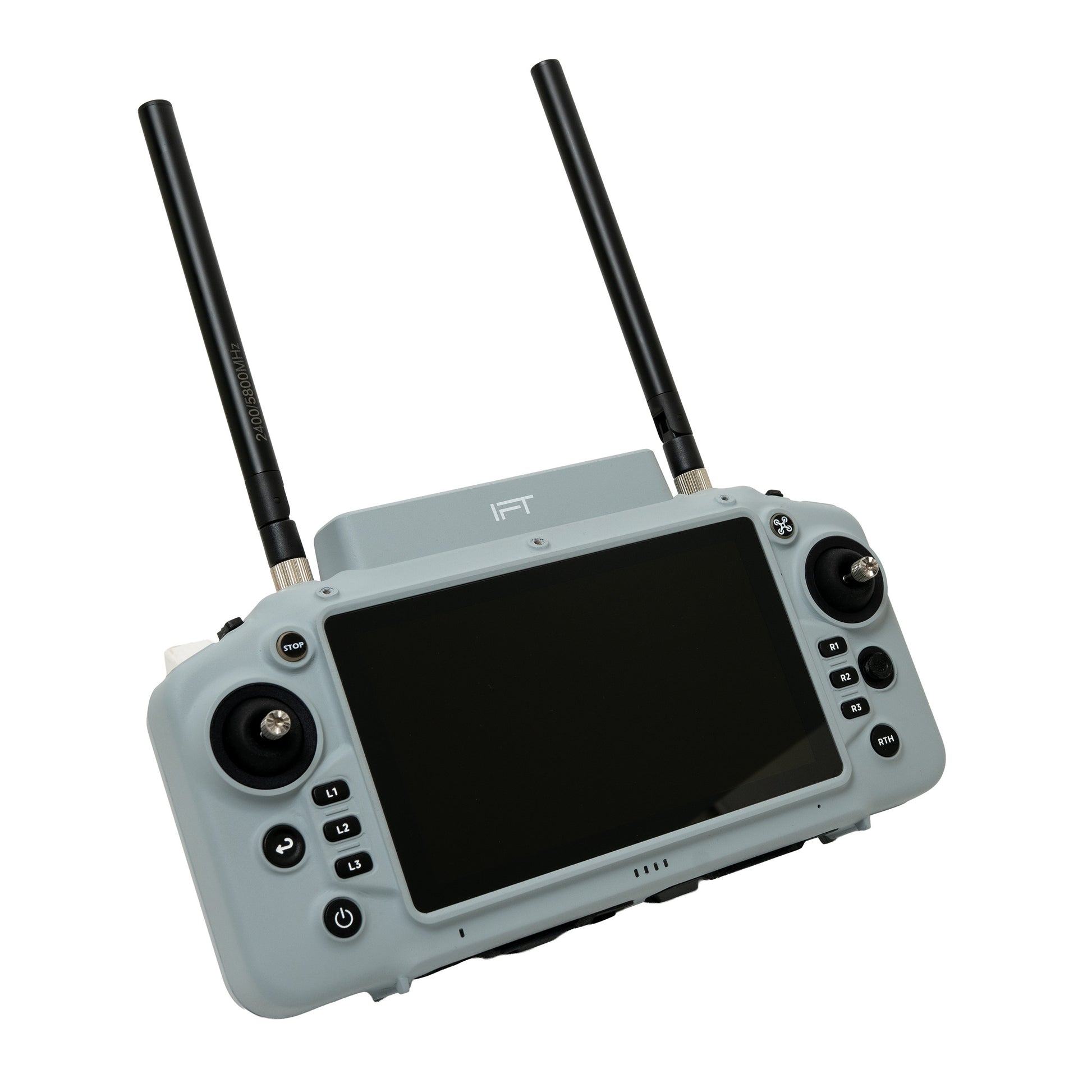

Large 7-inch High-Brightness Touchscreen
Integrated 7-inch display provides improved situational awareness and is optimized for outdoor visibility, including when using polarized sunglasses.

Extended Operating Runtime with Hot-Swappable Battery
10,400 mAh removable lithium polymer battery supports up to 5 hours of operation. An internal backup battery allows approximately 3 minutes of continued operation, enabling battery swaps without powering down the controller.

Secure Long-Range Communication
Operates on 2.4 GHz with AES-128 encryption, providing secure and reliable aircraft command and telemetry transmission.

Purpose-Built for Inspired Flight Aircraft
Designed specifically for IF800 and IF1200A platforms, ensuring seamless integration with Inspired Ground Control and Inspired Suite workflows.

Precision Control Hardware
Dual joystick controls, scroll wheel input, and multiple programmable buttons enable precise aircraft maneuvering and payload operation.

Customizable Operator Profiles
Button mapping and controller configurations can be customized, with user profiles saved and shared across accounts to maintain consistent control across fleet aircraft.

Fast USB-C Charging
Supports USB-C PD charging for efficient recharge between missions and continuous operation when connected to external power.

Integrated and Field-Ready Design
Professional-grade construction designed for reliable operation in demanding environments.

Blue UAS & NDAA-Compliant
Designed to meet U.S. government and enterprise security requirements, supporting secure deployment in regulated and mission-critical environments.

Compatible with Inspired Flight Aircraft

GS-ONE is the primary ground control station for Inspired Flight platforms, including:

IF800 Tomcat
IF1200A

Technical Specifications

Display
7-inch integrated high-brightness touchscreen
Optimized for outdoor visibility
Visible when wearing polarized sunglasses
Android-based system running Inspired Ground Control

Communication
Operating frequency: 2.4 GHz
Encrypted digital communication: AES-128

Control Interface
Dual precision joystick controls
Scroll wheel input with press functionality
Multiple programmable buttons
Customizable button mapping with user profile support
Integrated telemetry and live video monitoring

Battery and Runtime
10,400 mAh removable lithium polymer battery
Internal backup battery for uninterrupted operation during battery swaps
Up to 5 hours of operating time per charge
Supports operation while charging via USB-C

Physical Specifications
Weight: 1,200 g

What’s Included

GS-ONE Ground Control Station
Removable primary battery
USB-C charging accessories
Configuration interface support

The Standard Control System for Inspired Flight Aircraft

GS-ONE is the dedicated ground control station developed specifically for Inspired Flight platforms. Its large display, extended runtime, and seamless system integration provide operators with a reliable command interface designed for professional flight operations.

Purpose-built for Inspired Flight aircraft, GS-ONE delivers the performance, integration, and operational reliability required for demanding missions.
