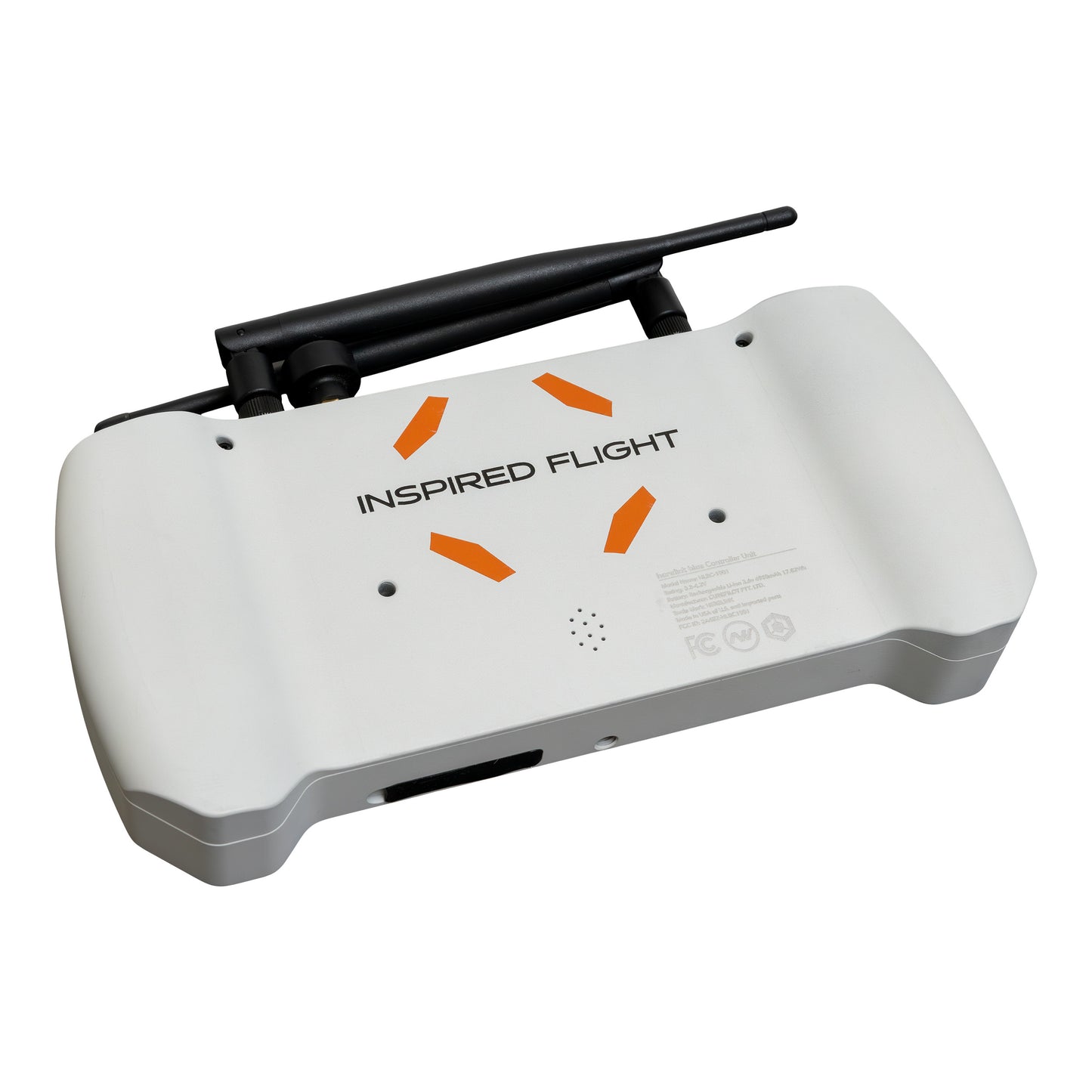

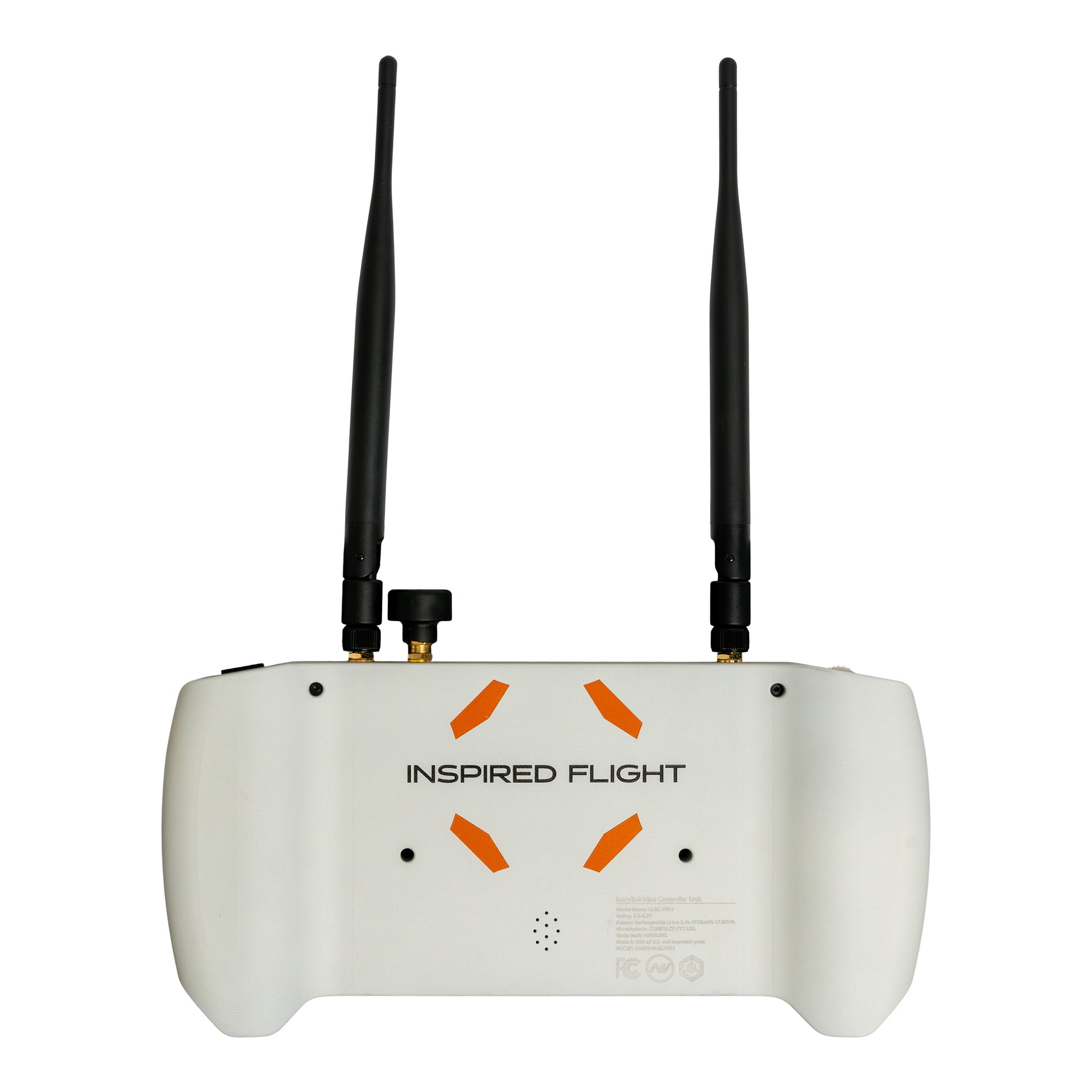

Herelink Ground Control Station

Reliable, Integrated Control for Inspired Flight Aircraft

Herelink is a proven all-in-one ground control station that provides secure, long-range command and live video transmission for Inspired Flight aircraft. Featuring an integrated 5.46-inch touchscreen, AES-128 encrypted communication, and native compatibility with Inspired Ground Control, Herelink delivers dependable aircraft control in a streamlined and cost-effective platform.

Its integrated design eliminates the need for external tablets or mobile devices, enabling faster deployment and simplified field operations.

Proven Performance with Secure, Long-Range Communication

Herelink combines aircraft command, telemetry monitoring, and live video into a single handheld controller. Operating on 2.4 GHz with AES-128 encryption and up to 5.5 km of signal range, it provides secure and stable communication between pilot and aircraft.

Running Inspired Ground Control on an Android-based platform, Herelink supports mission configuration, telemetry monitoring, and customizable control workflows within a familiar and responsive interface.

Key Features

Secure Long-Range Digital Transmission
Provides up to 5.5 km of signal range using 2.4 GHz communication with AES-128 encryption, ensuring reliable and secure aircraft control.

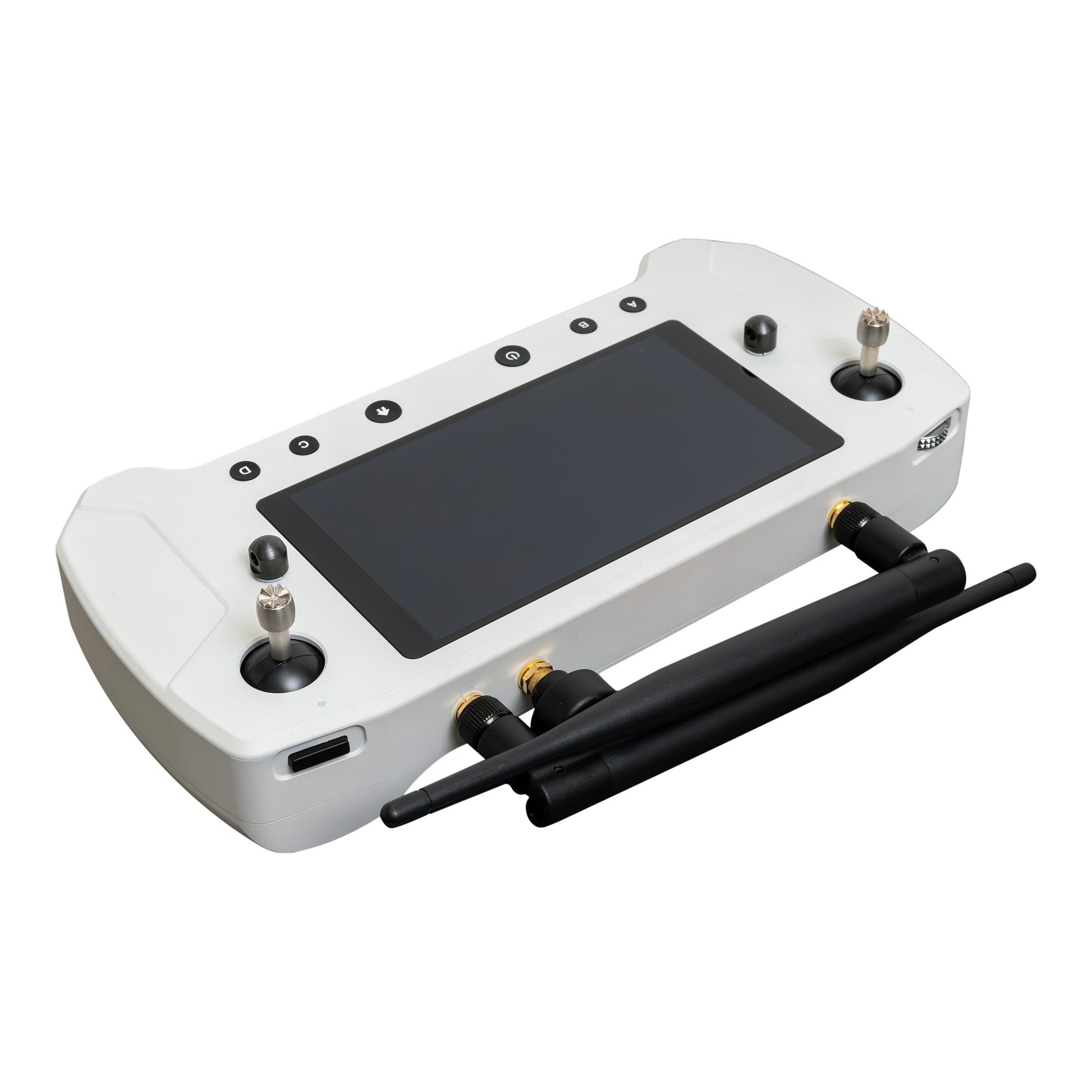

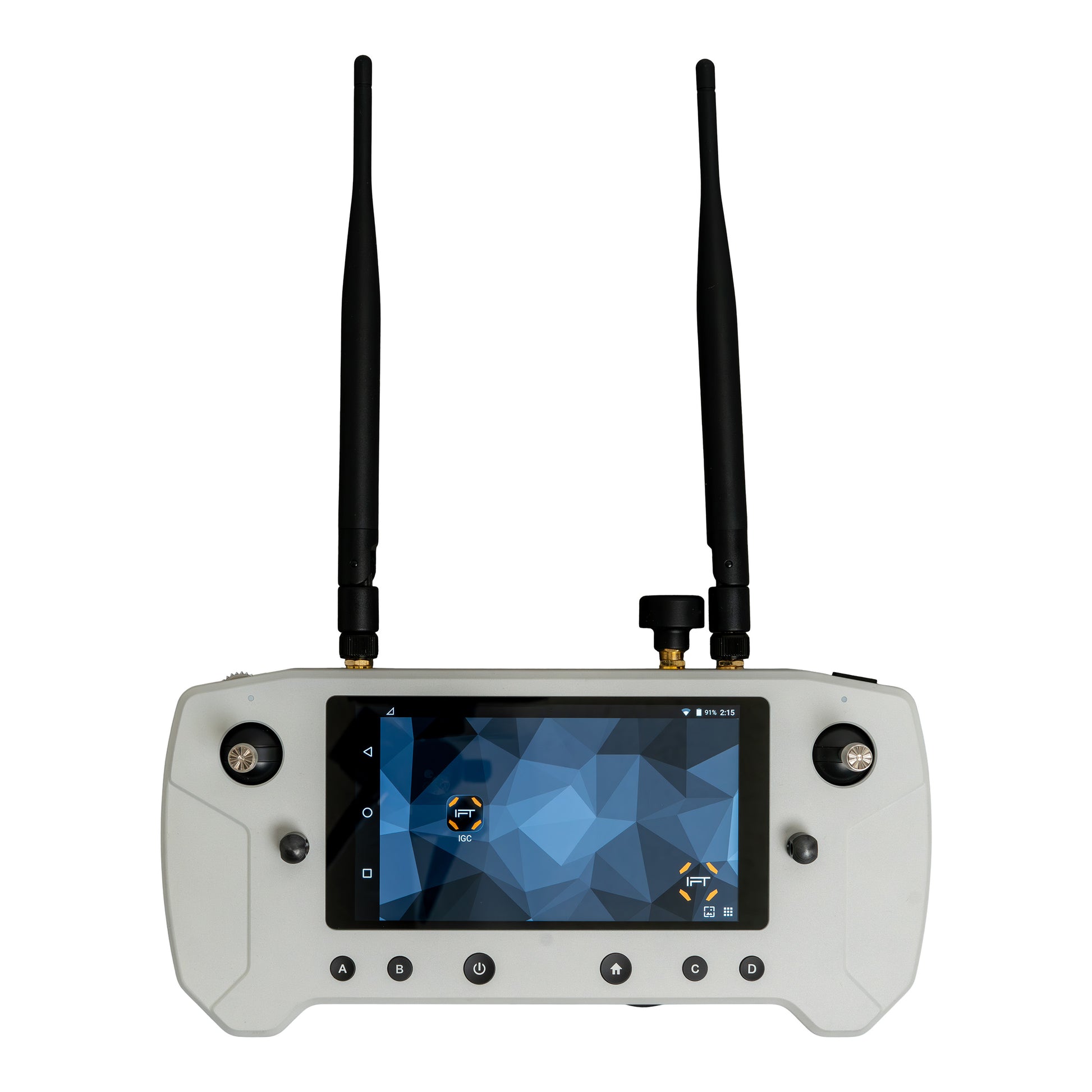

Integrated 5.46-inch Touchscreen Display
Built-in touchscreen runs Inspired Ground Control (IGC), providing a responsive and intuitive interface for aircraft control, telemetry monitoring, and mission execution.

Integrated Mission Control Interface
Fully compatible with Inspired Ground Control for aircraft configuration, mission planning, and real-time flight monitoring.

Precision Control Hardware

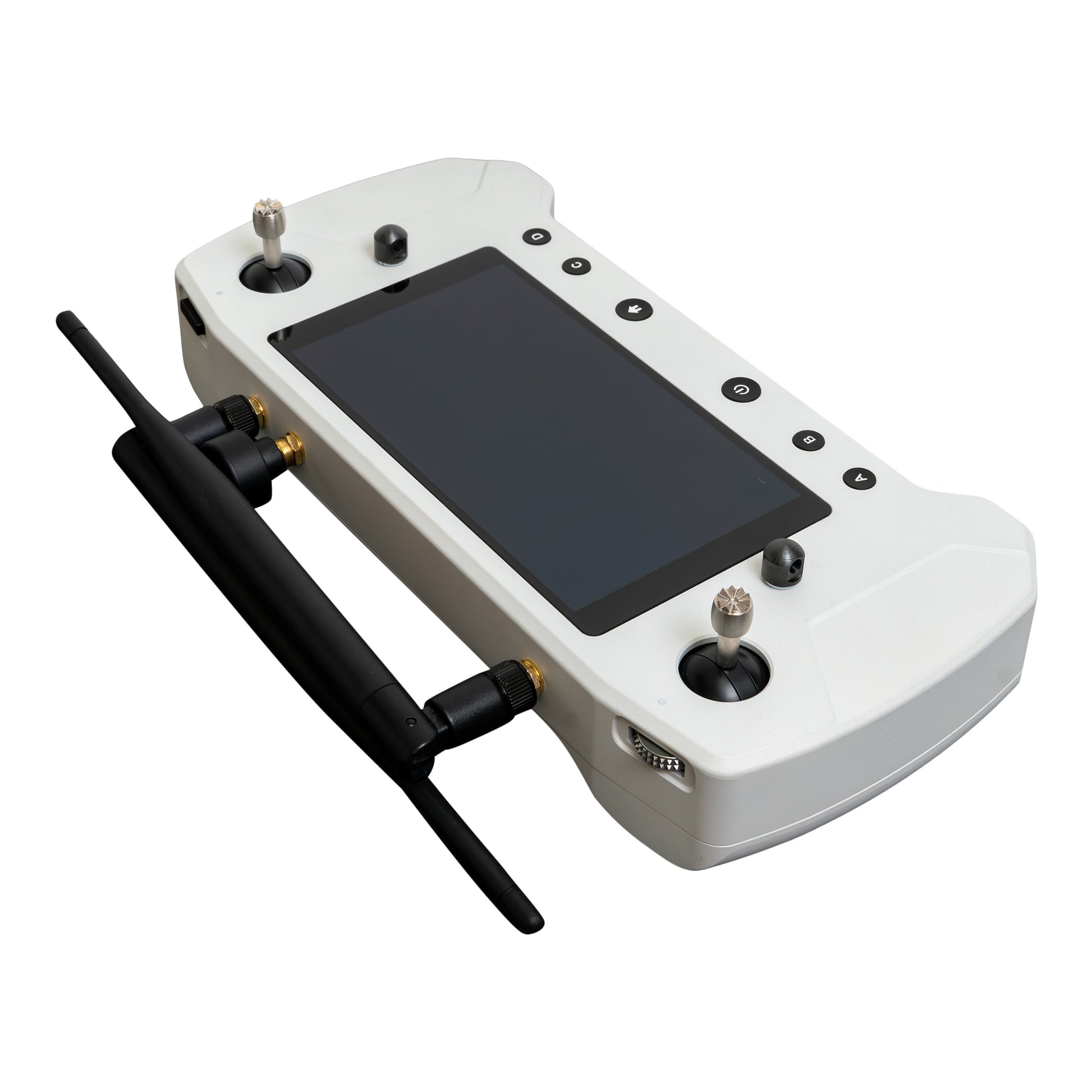

Dual joystick controls, scroll wheel input, and configurable buttons enable precise aircraft maneuvering and payload operation.

Customizable Control Layout
Button mapping can be configured to match operator preferences, with user profiles that can be saved and shared across accounts for consistent fleet-wide control.

Integrated and Portable Design
All-in-one handheld controller eliminates external devices, reducing setup time and simplifying deployment in the field.

Extended Operating Runtime
Integrated 4950 mAh battery delivers up to 4 hours of operation and supports continuous use while connected to external power, enabling uninterrupted mission control during extended deployments.

Compatible with Inspired Flight Aircraft

Herelink is fully compatible with Inspired Flight platforms, including:

IF800 Tomcat

IF1200A

This ensures stable aircraft communication, live telemetry monitoring, and reliable mission execution.

Technical Specifications

Display
5.46-inch integrated touchscreen
Android-based system running Inspired Ground Control
Optimized for outdoor field visibility

Communication
Operating frequency: 2.4 GHz
Maximum signal range: 5.5 km
Encryption: AES-128 secure communication

Control Interface
Dual precision joystick controls
Scroll wheel input with press functionality
Customizable button mapping with user profile support
Integrated telemetry and live video monitoring

Physical Specifications
Weight: 920 g
Integrated handheld controller design

Battery and Runtime
4950 mAh internal Li-ion battery
Up to 4 hours of operating time per charge
Supports operation while charging via Micro USB
Integrated battery monitoring through Inspired Ground Control

What’s Included

Herelink Ground Control Station

Integrated touchscreen display unit

Charging accessories

Configuration interface support

A Reliable and Cost-Effective Control Solution

Herelink provides a dependable ground control solution for Inspired Flight aircraft, combining secure communication, integrated mission control, and streamlined field deployment. Its proven performance and integrated design make it a practical and cost-effective controller option for professional drone operators.
