The MicaSense Integration Kit provides toolless, plug-and-play compatibility between Inspired Flight drones and the full MicaSense sensor family, including Altum-PT, RedEdge-P, RedEdge-P Blue, RedEdge-P Green, and any Dual RedEdge-P pairing cameras. With integrated Smart Dovetail power, data, and trigger control, the kit delivers secure mounting, rapid setup, and precise DLS installation for consistent workflows. Designed for NDAA-compliant Inspired Flight platforms, it enables high-fidelity imaging across agriculture, environmental monitoring, and research applications.

Key Features

• Full MicaSense Compatibility: Supports Altum-PT (thermal + multispectral + RGB) and all RedEdge-P variants—Standard, Blue, and Green.

• Dual RedEdge-P Support: Mount, power, and operate any two RedEdge-P sensors (Standard/Blue/Green) for up to 10 synchronized spectral bands.

• Smart Dovetail Integration: Provides synchronized power, data, and external triggering through Inspired Flight’s tool-free dovetail interface.

• Included DLS Mounting Hardware: Ensures proper installation and orientation of the MicaSense DLS for accurate irradiance measurements and radiometric correction.

• Platform Compatibility: Designed for the IF800 Tomcat and IF1200.

• Toolless, Secure Mounting: Quick-attach dovetail mechanism offers fast setup and repeatable sensor alignment.

• NDAA-Aligned Workflow: Integrates directly into Inspired Flight’s NDAA-compliant ecosystem.



Benefits

• Mission Flexibility: Switch easily between Altum-PT, RedEdge-P, or Dual RedEdge-P payloads depending on project needs.

• Enhanced Data Quality: Stable mechanical alignment and DLS support ensure trusted radiometric accuracy and well-synchronized imagery.

• Reduced Setup Time: Toolless camera mounting and pre-engineered cable paths streamline field operations.

• Versatile Application Coverage:



• Agriculture: crop vigor, nutrient status, thermal moisture analysis, stress detection

• Environment: coastal studies, wetland mapping, habitat monitoring

• Research: phenotyping, pigment analysis, time-series datasets, AI/ML workflows



• Operational Reliability: Inspired Flight hardware maintains secure payload stability in demanding flight conditions.

Technical / Spec-Sheet Description

Product Name: EagleNXT Integration Kit

Supported Sensors:

• Altum-PT (thermal, multispectral, RGB, pansharpening) ()

• RedEdge-P (Standard)

• RedEdge-P Blue (with coastal & ocean blue bands)

• RedEdge-P Green (optimized for pigment and PRI analysis)

• Dual RedEdge-P: Any combination of Standard, Blue, or Green for up to 10 spectral bands ()

Platform Compatibility:

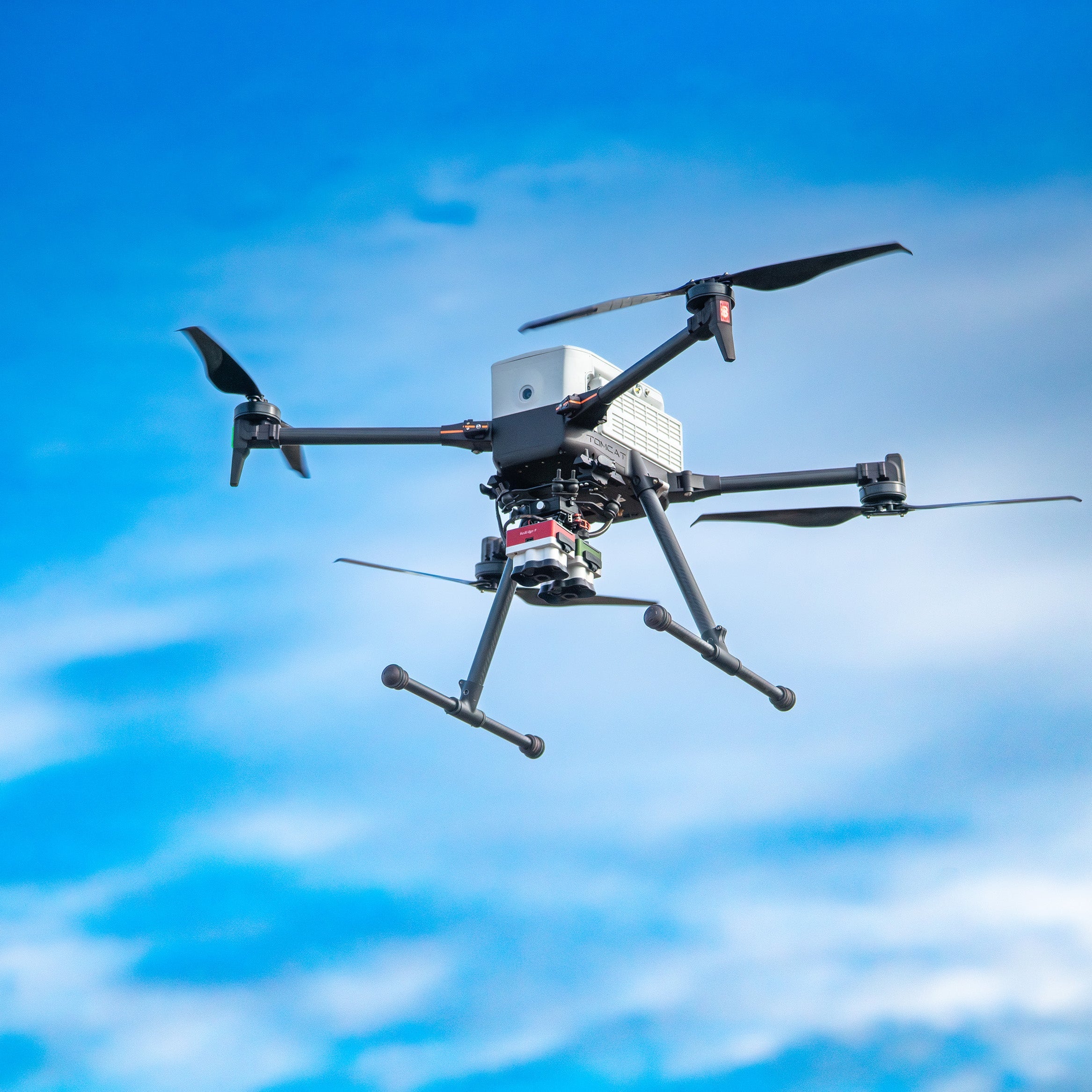

• IF800 Tomcat

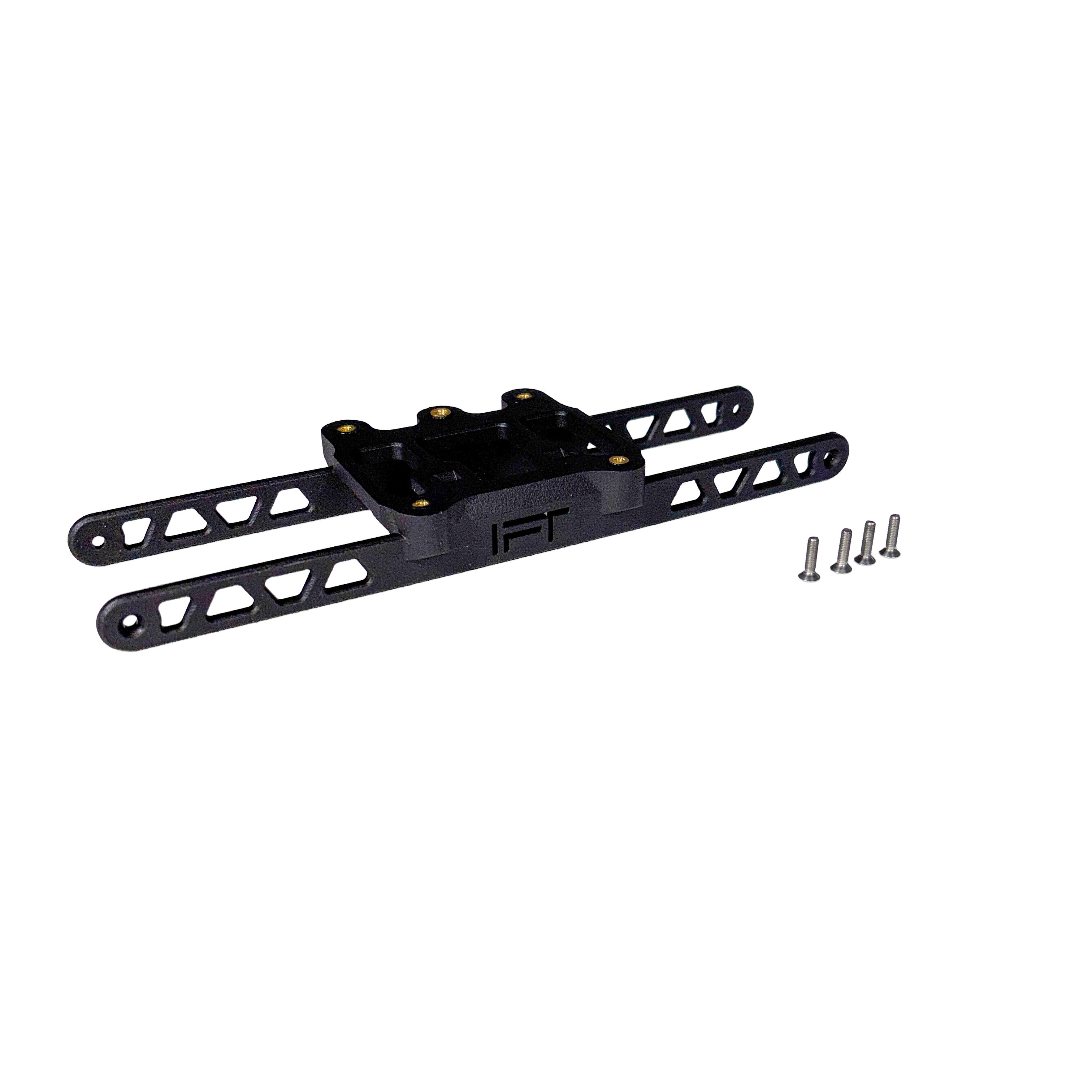

• IF1200 (requires additional mounting bracket)

Mounting & Interface:

• Inspired Flight Smart Dovetail Interface for power, Ethernet data, and trigger control ()

• Single-camera and dual-camera brackets included

• Dedicated DLS mounting hardware

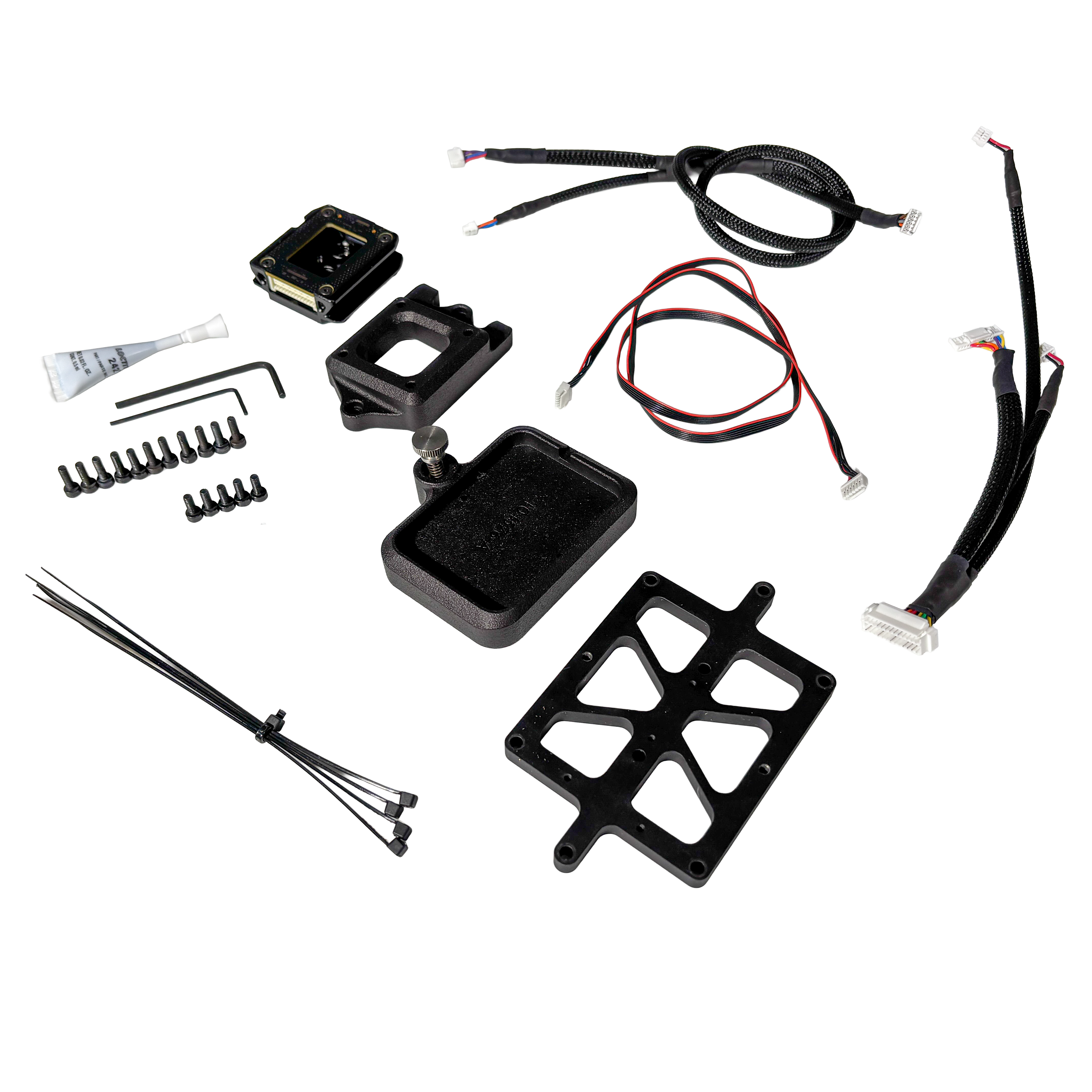

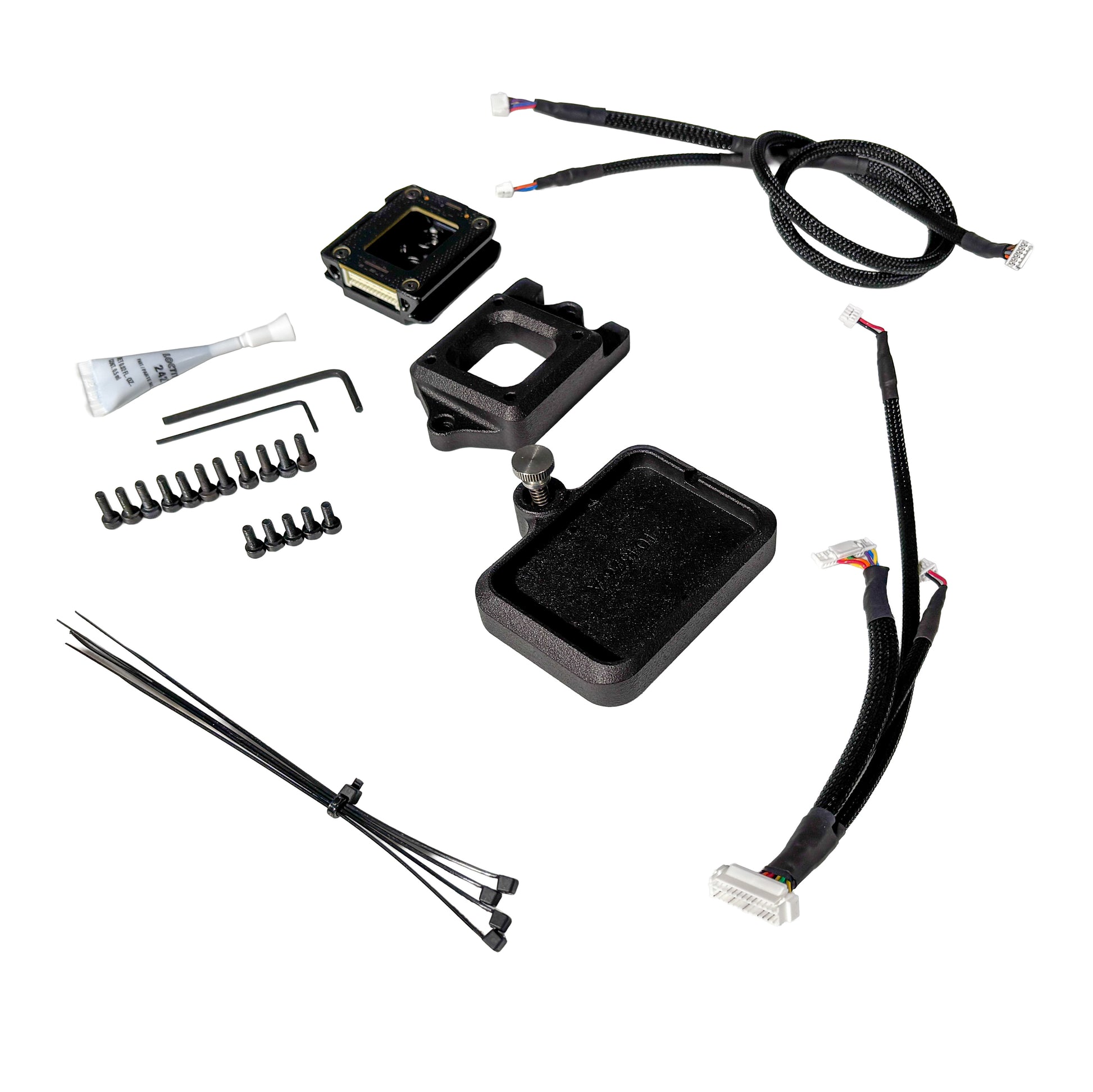

Included Components:

• Smart Dovetail camera mount

• Single and dual-sensor brackets

• PWR/COMM cabling

• DLS mount and Single/Dual DLS cabling

• All required hardware for Altum-PT or RedEdge-P installation



Capabilities:

• External PWM triggering ()

• Ethernet communication for configuration and monitoring

• Repeatable mechanical alignment for radiometric consistency

• Supports radiometric calibration with MicaSense DLS2
